Reusable Module for Vision and target Matching

Modules are part of the ARISE Middleware

Important

Access the GitHub repository here!

Features

• Automatic CPU / CUDA support

• Segmentation support (OBB from mask)

• Optional annotated image publishing

• Latched class_map publishing

• Industrial metrics (FPS, infer_ms, device, etc.)

• Configurable class_id mode

Getting started

This module represents par an AI assitant detection system. The user is expected to input a request and through Natural Language Processing, detect the task and object it is refering too. The object will become the keyword, or target object for the module.

Dependencies

All Python dependencies are included inside the requirements.txt file. To install, execute on terminal:

pip install -r /requirements.txt

This package is dependent on other ROS2 interfaces:

sudo apt install \
  ros-${ROS_DISTRO}-vision-msgs \
  ros-${ROS_DISTRO}-cv-bridge

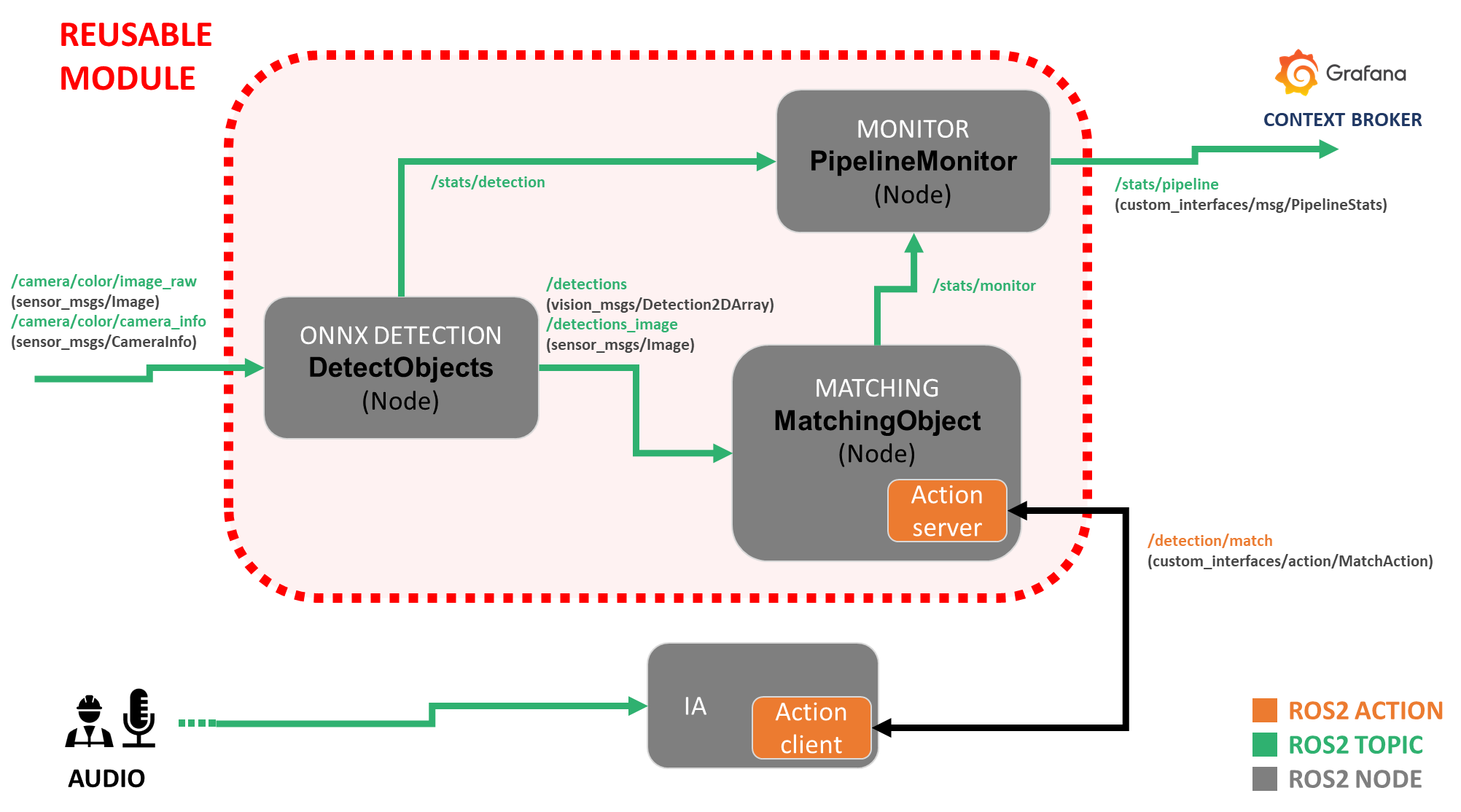

What is included in the module

We provide the CARTIFactory package, home to several nodes, that together allow you to test this reusable module.

Keyword Matcher

The keyword_matcher downstream of the detector node. Its main purpose is to determine whether a requested object class is present in the latest detections.

The node subscribes to the latest detection results and stores them internally. When a match request is received through the custom_interfaces/MatchAction action server, it compares the requested keyword against the detected class labels and returns only the detections that match that keyword. Matching can be configured to be case-insensitive, to stop at the first valid match, and to ignore detections below a configurable confidence threshold.

The node additionally monitors the availability of the camera stream by tracking incoming CameraInfo messages. If no camera information is received for a configurable timeout period, the node marks the camera as unavailable and rejects incoming match action goals. This allows the node to prevent match requests from being accepted when the perception pipeline is not receiving live input.

ONNX Detector

The detector_onnx node performs image-based object detection and segmentation inference in ROS2 using an ONNX model executed with ONNX Runtime. It subscribes to a camera image topic, preprocesses each frame to the network input size, runs inference, post-processes the model outputs, and publishes the results as vision_msgs/Detection2DArray.

The node also supports optional publication of a debug image where masks, bounding boxes, labels, and oriented boxes are drawn on top of the original image. It publishes a latched class map topic so that downstream nodes can resolve class IDs to human-readable labels, either from a TOML configuration file or from fallback numeric IDs.

Configuration can be provided through ROS2 parameters and optionally complemented with a .toml file, which may define metadata such as model type, class names, default confidence threshold, and model path. The node supports execution on CPU or CUDA, depending on the selected device and available ONNX Runtime providers.

For monitoring and integration into production pipelines, the node can also publish pipeline statistics such as dropped frames and node identity. It includes an optional drop_if_busy mode to avoid queue buildup by discarding incoming frames when inference is still running on the previous one.

Overall, this node is designed as a ROS2 perception component for real-time industrial vision pipelines, combining ONNX inference, mask-based oriented detections, debug visualization, class mapping, and runtime statistics in a single detector node.

Supported ONNX model format

The current implementation expects ONNX models that follow a dense detection output structure, with optional instance segmentation support.

Outputs

The model must provide either:

Detection only

• output[0]: tensor containing bounding boxes and class scores

Detection + segmentation

• output[0]: tensor containing bounding boxes, class scores, and mask coefficients

• output[1]: tensor containing mask prototypes

Expected prediction structure

Each prediction row is expected to encode:

• Bounding boxes in center-based format: (cx, cy, w, h)

• Per-class confidence scores

• Optional mask coefficients for instance mask reconstruction

If segmentation is enabled, masks are reconstructed internally by combining the mask coefficients with the prototype tensor.

Internal postprocessing

The node assumes a dense prediction tensor where each row represents one detection candidate. Postprocessing is handled internally and includes:

• Confidence filtering

• Non-maximum suppression (NMS)

• Optional mask reconstruction

• Optional oriented bounding box (OBB) extraction from masks

If mask outputs are not present, the node automatically operates in detection-only mode.

Input preprocessing

Before inference, each image is preprocessed using the following steps:

• Color conversion (BGR → RGB)

• Resize or letterbox to match model input size

• Normalization to [0, 1]

• Layout conversion to NCHW

Output

The node publishes:

• vision_msgs/Detection2DArray

Optionally, it can also publish a debug image including:

• Bounding boxes

• Segmentation masks

• Oriented bounding boxes (OBB)

• Class labels and scores

Model compatibility

This node is compatible with ONNX models that:

• Output bounding boxes and class scores in a unified tensor

• Optionally include mask prototype outputs for instance segmentation

• Use center-based box representation (cx, cy, w, h)

Warning

Models that do not follow this structure may require adapting the postprocessing logic.

Pipeline Monitor

This node is used for relaying different statistics of the workspace to the Context Broker (see the latest section about FIWARE’s Context Broker).

This node subscribes to statistics topics being published by the other two nodes and publish it into a joined status message, using the interface custom_interfaces/PipelineStats.

Custom Interfaces

A custom_interfaces package is included, to handle the custom message for the pipeline information and the goal

Pipeline Statistics

For the sending the diagnostics to the Context Broker we use a custom interface custom_interfaces/PipelineStats with the followind definition:

PipelineStats fields

Field	Type	Description
frames_dropped	uint64	Number of frames discarded before processing due to overload or synchronization issues.
action_goals_received	uint64	Total number of goals received by the action server.
action_goals_accepted	uint64	Number of goals accepted for execution.
action_goals_rejected	uint64	Number of goals rejected by the server.
action_goals_canceled	uint64	Number of goals canceled after acceptance.
action_goals_succeeded	uint64	Number of goals successfully completed.
action_goals_failed	uint64	Number of goals that finished with failure.
match_requests	uint64	Total number of match operations requested.
match_success	uint64	Number of successful match operations.
match_fail	uint64	Number of match operations that failed.
fps_input	float32	Frame rate of incoming images.
fps_processed	float32	Frame rate actually processed by the node.
avg_inference_ms	float32	Average inference time per frame in milliseconds.
camera_available	bool	Indicates whether the camera stream is currently available.
node_name	string	Name of the node publishing these metrics.

Warning

If infer_ms > 200 ms, a WARN status is published.

Detection action

This action allows a client to request a visual search operation using a keyword. The node performs detection and returns the results along with an annotated image.

Goal

Goal fields

Field	Type	Description
kw	string	Keyword describing the object or class to search for in the scene.

Result

Result fields

Field	Type	Description
action_success	bool	Indicates whether the action execution completed successfully.
match_success	bool	Indicates whether a matching detection was found for the requested keyword.
det	vision_msgs/Detection2DArray	Array containing the detections generated by the model.
img	sensor_msgs/Image	Image with the detections annotated for visualization or debugging.

Feedback

Feedback fields

Field	Type	Description
feedback	string	Informational message describing the current status of the action execution.

To call the action execute:

ros2 action send_goal /detection/match custom_interfaces/action/MatchAction "{kw: '<'your keyword'>}"

Tip

If you want to also see the feedback from the action, add --feedback at the end.

ros2 action send_goal /detection/match custom_interfaces/action/MatchAction "{kw: '<your keyword>'}" --feedback

# Defining the Models (TOML)
We are using [Tom's Obvious Minimal Language](https://toml.io/en/) for the configuration description of the models. The file follows this structure:
```bash
title = "Wheels"
description = "This model can detect wheels"
path = "/path_to_your_model"

[model]
weights = "wheels-seg.onnx"

[parameters]
type = "Segmentation"
confidence = 0.6

[classes]
classes=["Left","Right"]
colours = [[0, 0, 250], [250, 0, 0]]

Connecting to FIWARE’s Context Broker

The ecosystem the interaction is running under Engineering Group’s PoC ecosystem. This is necessary for the Context Broker to be able to see the ROS2 topics. For this module, the IoT Agent OPCUA is not used, so its implementation is optional.

Configure FIWARE to store the reusable module topic

To make FIWARE store the topic published by the reusable module, you first need to edit the configuration file located at:

conf/orionld/config-dds.json

Inside this file, add the following block inside:

"ngsild": {
  "topics": {
    ...
  }

Add this entry:

"rt/stats/pipeline": {
  "entityType": "PipelineDetection",
  "entityId": "urn:ngsi-ld:stats:1",
  "attribute": "stats"
}

After adding this configuration, FIWARE will be able to detect the /stats/pipeline topic and store its data correctly in the TimescaleDB database.

Grafana connection and visualizing

To visualize the data stored in TimescaleDB with Grafana, follow the steps described in Step 4 - Access the Grafana Dashboard of the official ARISE PoC Engineering documentation. That section explains how to access Grafana, connect to the TimescaleDB data source, create a new dashboard, add panels, build queries, and select the appropriate visualization type. In the ARISE PoC guide, Grafana is available at https://localhost/login with the default credentials admin/admin, and the same section also covers datasource configuration and dashboard creation.

In particular, the documentation includes:

• how to configure the TimescaleDB datasource in Grafana,

• how to create a new dashboard,

• how to add a panel,

• how to write a query for the selected datasource,

• and how to choose the most suitable visualization for the data.

Example query

The following query can be used to visualize action-goal statistics for the reusable module:

SELECT
  ts AS "time",
  (compound ->> 'action_goals_received')::integer AS "Received",
  (compound ->> 'action_goals_accepted')::integer AS "Accepted",
  (compound ->> 'action_goals_rejected')::integer AS "Rejected",
  (compound ->> 'action_goals_canceled')::integer AS "Canceled",
  (compound ->> 'action_goals_succeeded')::integer AS "Succeeded",
  (compound ->> 'action_goals_failed')::integer AS "Failed"
FROM public.attributes
WHERE entityid = 'urn:ngsi-ld:stats:1'
ORDER BY 1;

This query retrieves time-series data for the entity urn:ngsi-ld:stats:1 from the public.attributes table. For each timestamp (ts), it extracts several counters stored inside the compound JSON field and converts them to integers.

The resulting series represent:

• Received: number of action goals received by the module,

• Accepted: number of action goals accepted,

• Rejected: number of action goals rejected,

• Canceled: number of action goals canceled,

• Succeeded: number of action goals successfully completed,

• Failed: number of action goals that failed.

In Grafana, this query can be displayed as a time-series chart to monitor how the action-goal counters evolve over time.

Reusable module dashboard JSON

Additionally, the repository already includes a JSON file containing the dashboard template for the reusable module. This means users can simply import that dashboard into Grafana and immediately access the predefined visualizations, without having to create the panels manually.

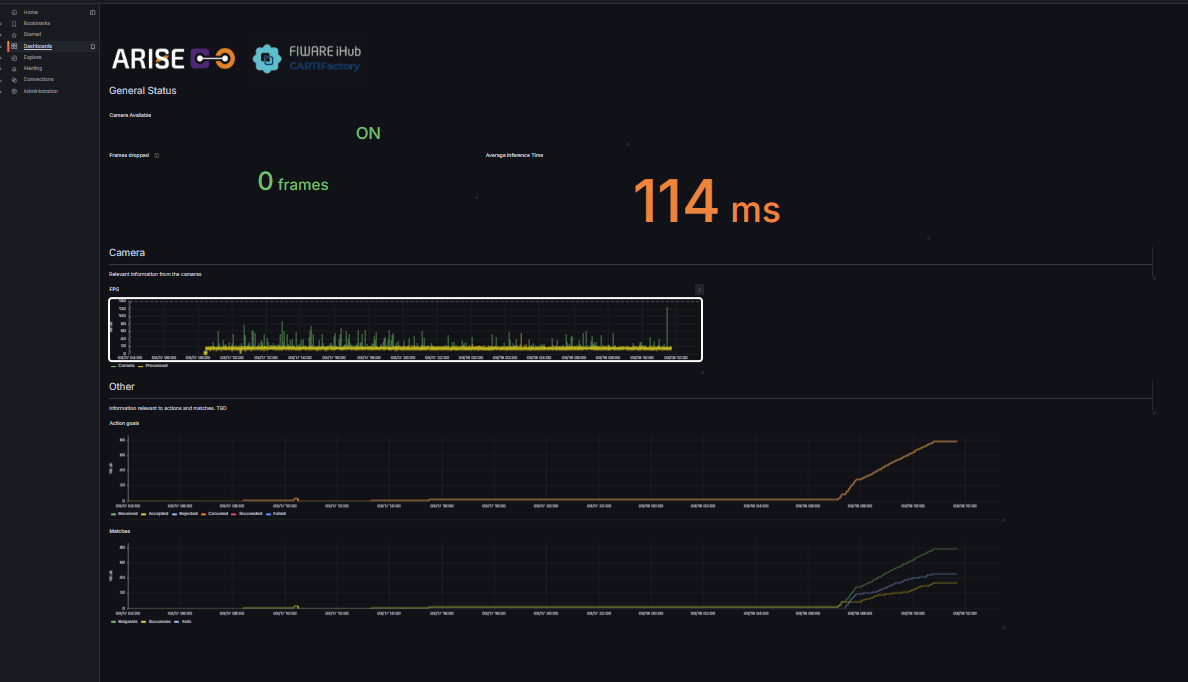

Example of reusable module dashboard:

Running the Module

The launch file cartifactory_pipeline.launch.py provides an easy way to start the module. You only need to define

ros2 launch cartifactory cartifactory_pipeline.launch.py toml_path:=/path/to/model.toml

The following launch arguments configure the behavior of the ONNX detector node and its ROS2 interfaces.

Launch Arguments

Launch arguments

Argument	Default	Type	Description
toml_path	""	string	Path to the model.toml configuration file used by the onnx_detector node.
image_topic	/camera/camera/color/image_raw	string	Input ROS2 image topic from which the detector subscribes to images.
detections_topic	/detections	string	Base topic where detection results are published. Annotated images are published on <detections_topic>/image.
publish_debug_image	true	bool	Enables publishing of the annotated debug image showing detections.
detections_qos	sensor_data	string	QoS profile used when publishing detection messages.
debug_qos	best_effort	string	QoS profile used when publishing the debug image topic.
img_h	480	int	Height of the image expected by the ONNX model.
img_w	640	int	Width of the image expected by the ONNX model.
class_id_mode	name	string	Determines how the detected class is published: id (numeric class id) or name (class label).

---
